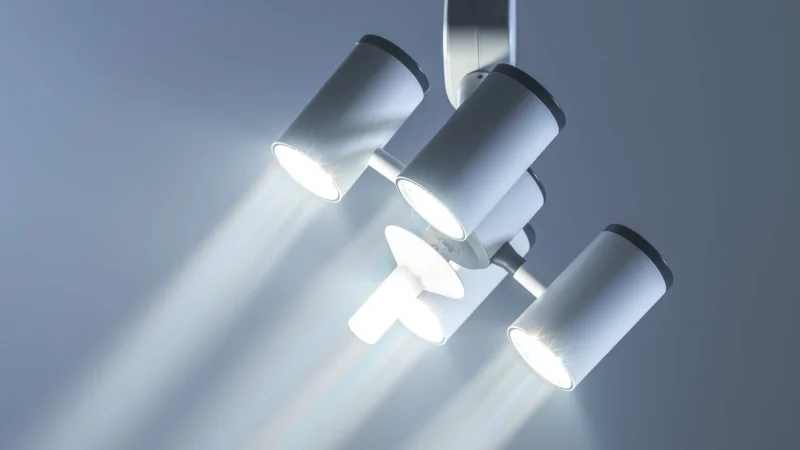

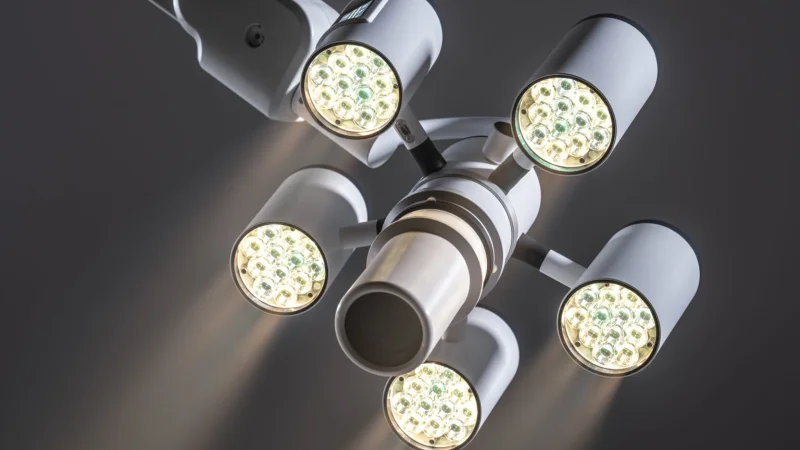

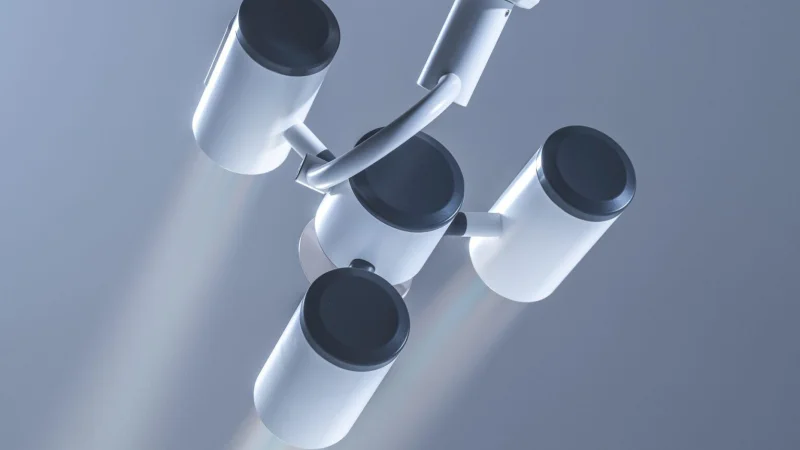

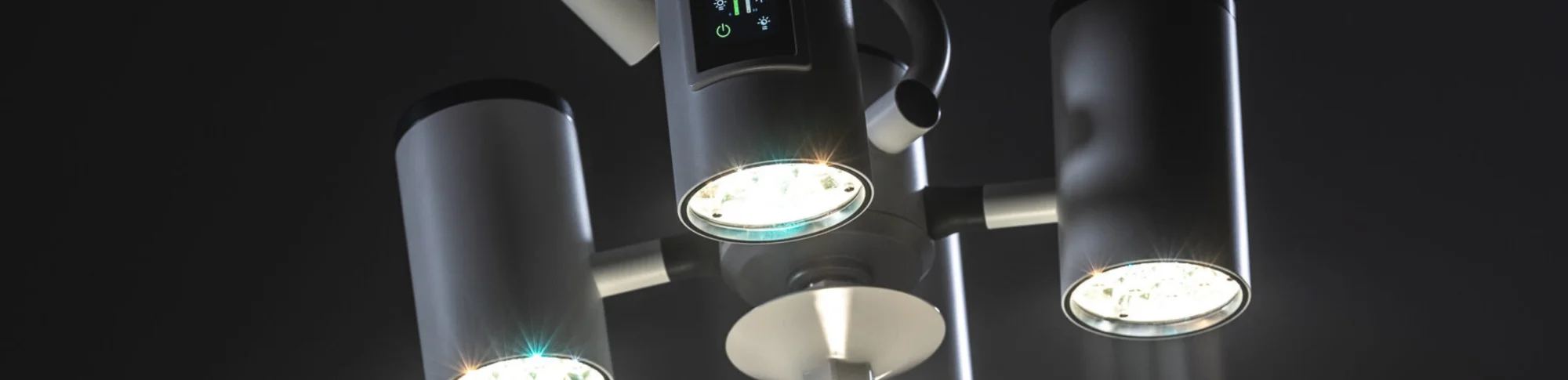

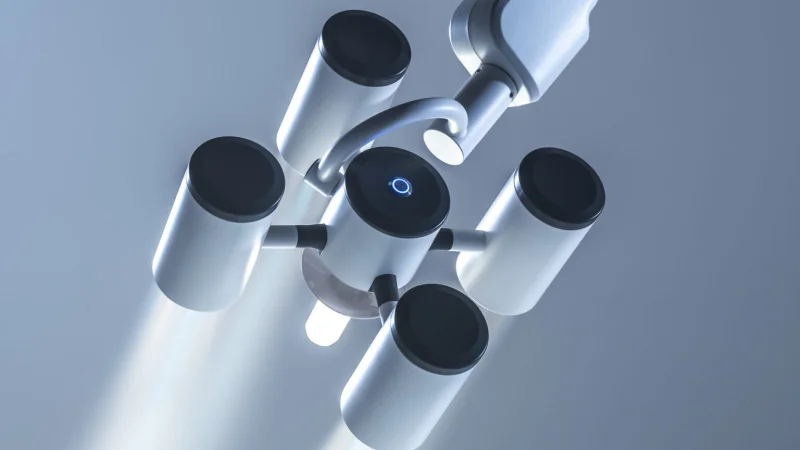

Surgical lights: SOL Performance, Eco and Mini
Lightweight and yet extremely powerful. Compact, yet packed with well-thought-out, valuable features for your day-to-day practice. Easy to manoeuvre, yet perfectly safe, the SOL Performance, Eco and Mini surgical lights offer everything doctors and surgeons want in their day-to-day professional lives.
Let there be light.
The first thing to mention is the outstanding light quality. Their asynchronous and high-frequency operation means the light they produce is absolutely flicker-free – perfect for fatigue-free surgery, mimicking natural sunlight.
The colour temperature can be smoothly adjusted, making contrasts between the different types of tissue much more clearly visible.
The light intensity is also continuously adjustable. Light efficiency is optimised with anti-reflective cover glass for even clearer light and an unobstructed view.

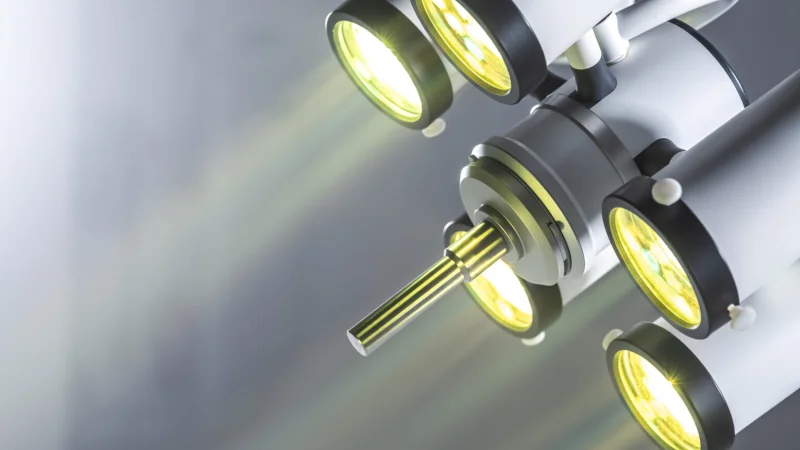

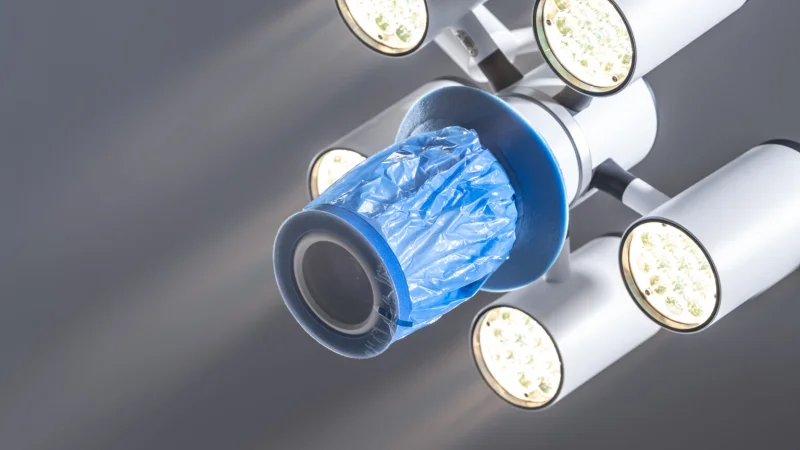

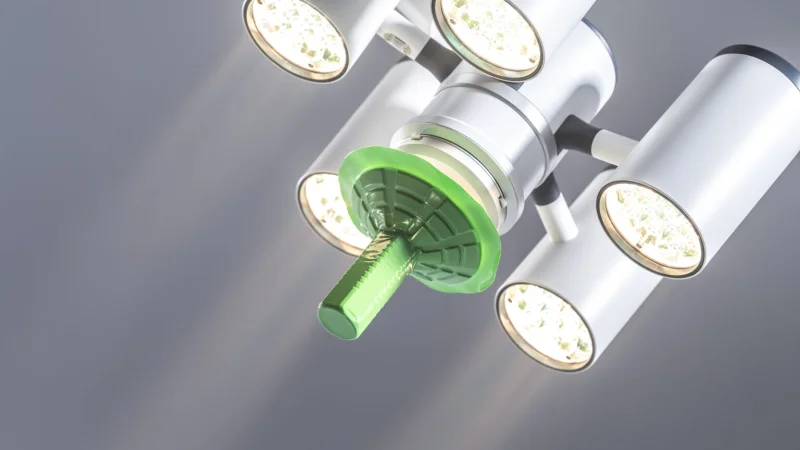

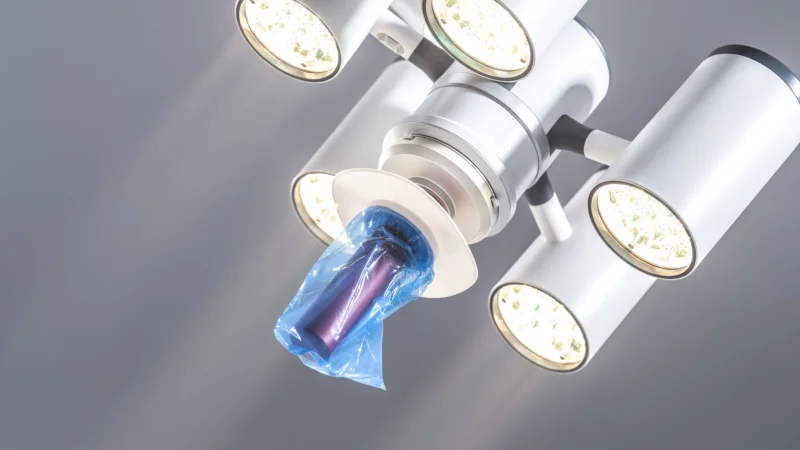

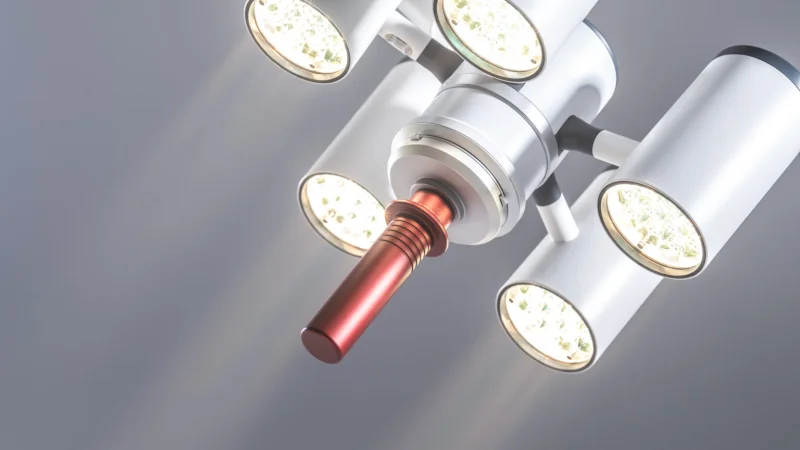

And last, but not least, the sterilisable universal handle allows a continuously focusable beam of light to be shone on the wound area. The result is a reassuringly uniform LED light field with a light quality that is very homogeneous but which brings out nuanced and sharp contours.
Award-winning film with Lena Häcki-Gross
Lightweight, easy to handle, manoeuvrable, airflow-optimised
The SOL Performance, Eco and Mini surgical lights set new standards, and not only in terms of light quality. Their compact and lightweight aluminium construction also inspires confidence.

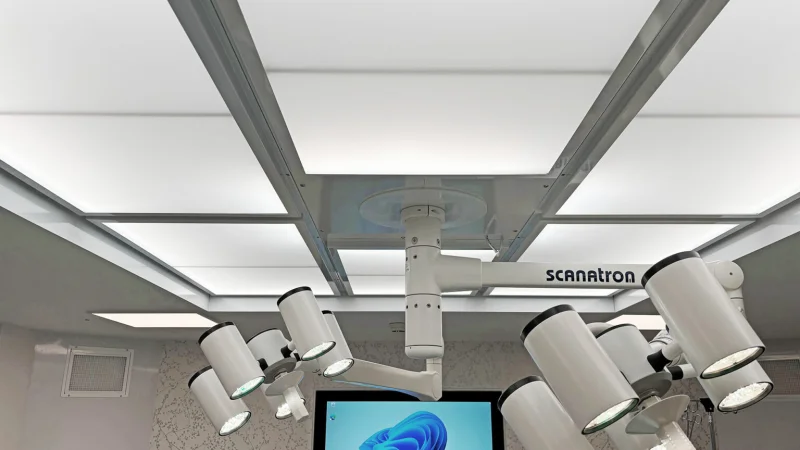

All SOL surgical lights are extremely easy to handle. Their manoeuvrability in all directions is comparable to that of a ball-and-socket joint. This means that they can be twisted to any angle with just one hand – with shadows kept to an absolute minimum. The airflow-optimised, open design ensures the utmost sterility under cleanroom ceilings.
Also worth a mention: these operating theatre lights are totally splash- and dust-proof and are easy to clean and disinfect. Repairs can be carried out without any specialist tools, and status and error messages on the display allow simple remote diagnosis of any problems.
Models
Cross-comparison models
| Merkmale | SOL Performance | SOL Eco | SOL Mini |
| Model | SOL20 | SEL21 | SUL22 |
| Beleuchtungsstärke in LUX | 96’000 Lux - 160’000 Lux | 128’000 Lux - 160’000 Lux | 100’000 Lux @80cm |
| Lichtprojektoren | 3-5 | 3-4 | 3 |
| Farbtemperatur CCT | 3’300 - 5’500 Kelvin, stufenlos einstellbar | 3’300 - 5’500 Kelvin, einstellbar in 5 Stufen | 4’000 Kelvin |
| Farbwiedergabeindex CRI | Ra ≥ 96 / R9 ≥ 85 / R13 ≥ 93 | Ra ≥ 96 / R9 ≥ 85 | Ra ≥ 96 / R9 ≥ 85 |
| Helligkeit dimmbar | Stufenlos | Stufenlos | Stufenlos |
| Endolight-Funktion | ja | ja | nein |
| Leuchtfeld d50 | 14 – 22 cm | 14 – 22 cm | 11 cm @ 80cm |
| Leuchtfeld d10 | 23 – 37 cm | 23 – 37 cm | 20 cm @ 80cm |
| Fokussierbar | ja | ja | nein |
| Gewicht | 4.8 kg – 6.7 kg | 4.8 kg – 5.8 kg | 3.1 kg |
| Aussendurchmesser | 38.5 cm | 38.5 cm | 29.5 cm |
| Kameraintegration | optional (C‑Version) | nein | nein |

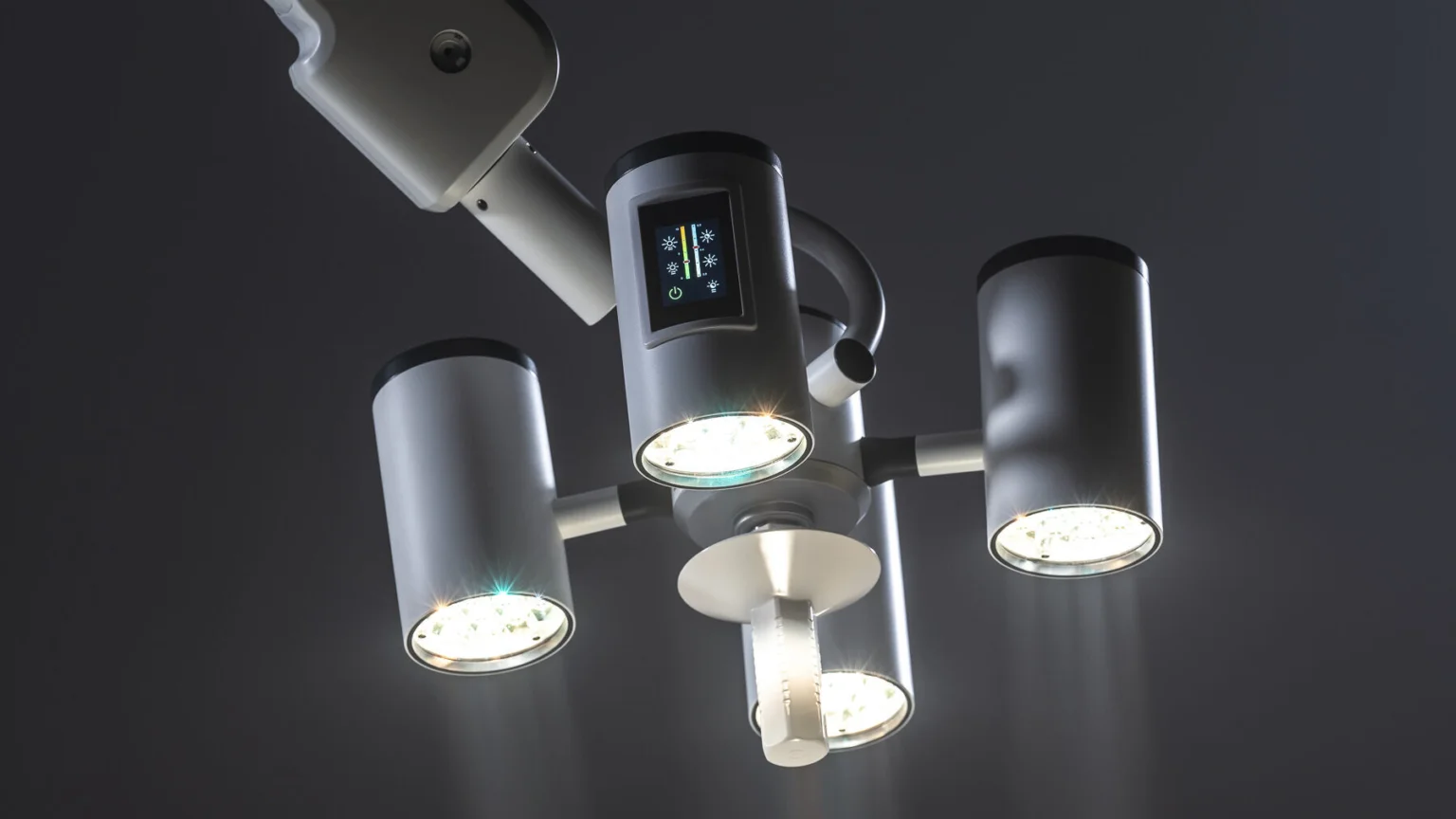

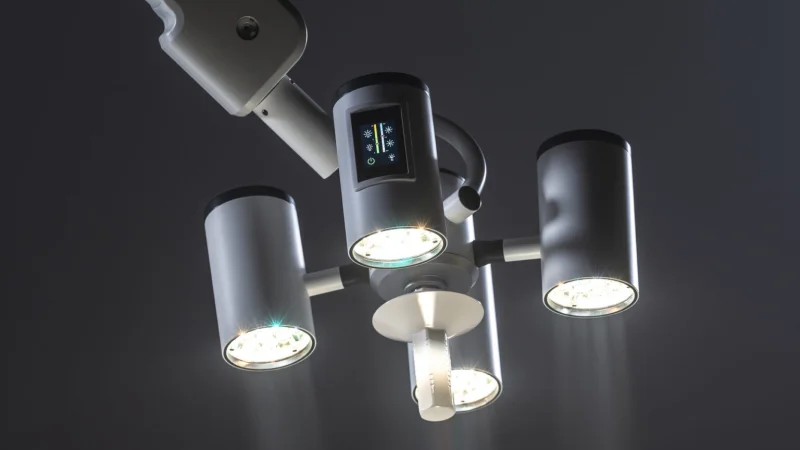

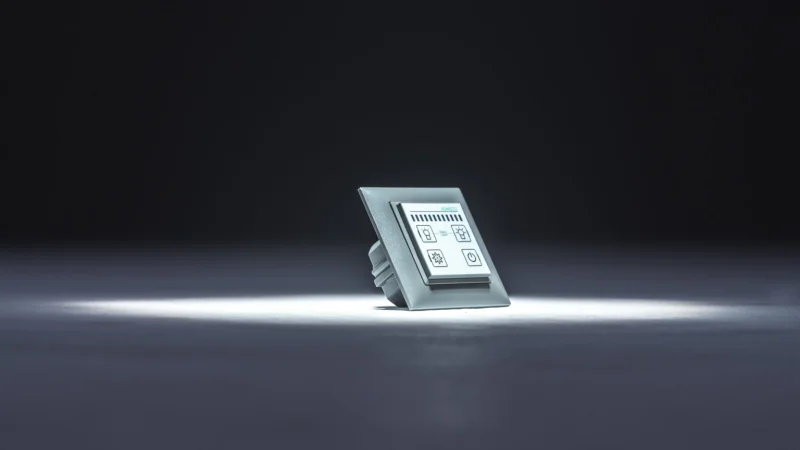

| Bedienung der Leuchte | farbiges Smart-Touchpanel | Taster | Taster |
| Fernbedienung | ja, optional | ja, optional | nein |
Additions
We will be happy to advise you.
Contact us, we are here for you.
Flyer surgical lights: SOL series
Fatigue-free work thanks to SOL
Anyone who has performed surgery in an operating theatre with a SOL surgical light will never again want to do without the following features:
The main advantages at a glance.
Flicker-free light
Thanks to asynchronous and high-frequency light generation
Sharp and homogeneous light quality
Continuously focusable light spot on the wound area
Continuously adjustable light intensity
Individually dimmable from 10 to 100 per cent
Continuously adjustable colour temperature
From 3,300 to 5,500 Kelvin, for a nuanced, high-contrast and precise view of the tissue
Minimal shadows
Thanks to compact, lightweight and manoeuvrable aluminium construction
Lightweight and easy to handle
The SOL surgical lights are the most compact surgical lights on the market

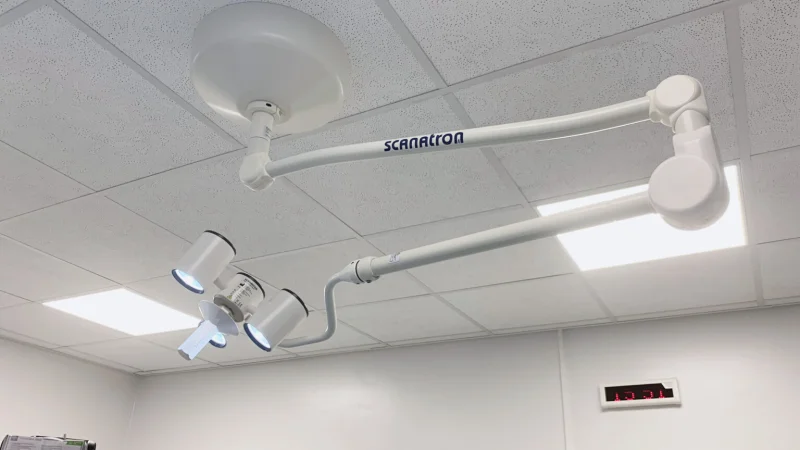

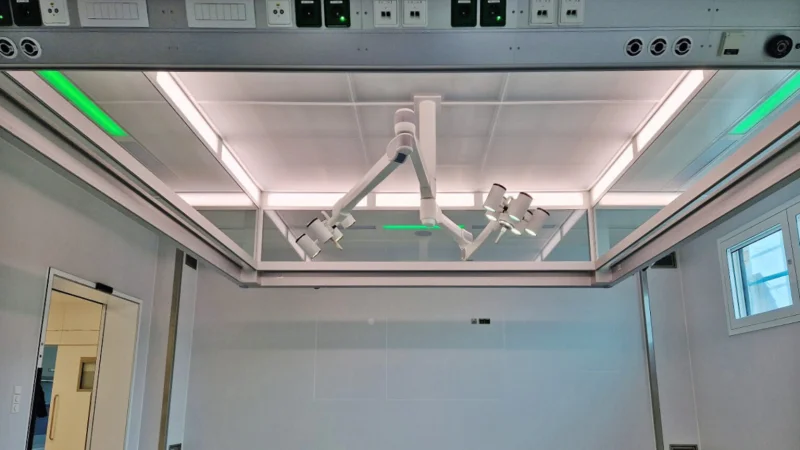

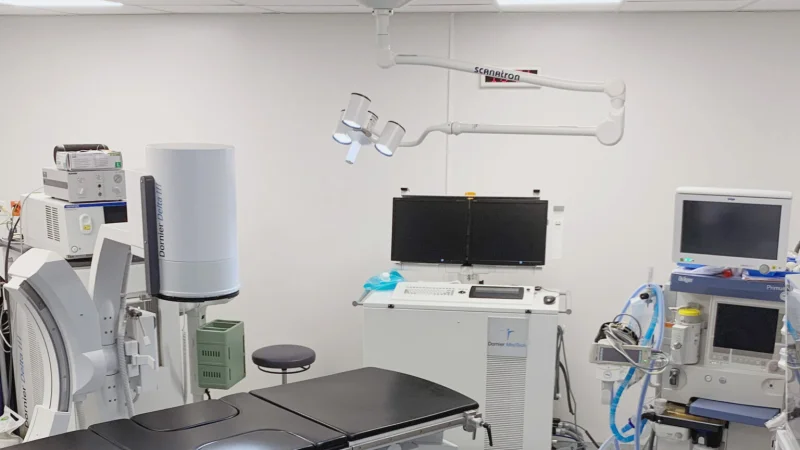

Best Practice
